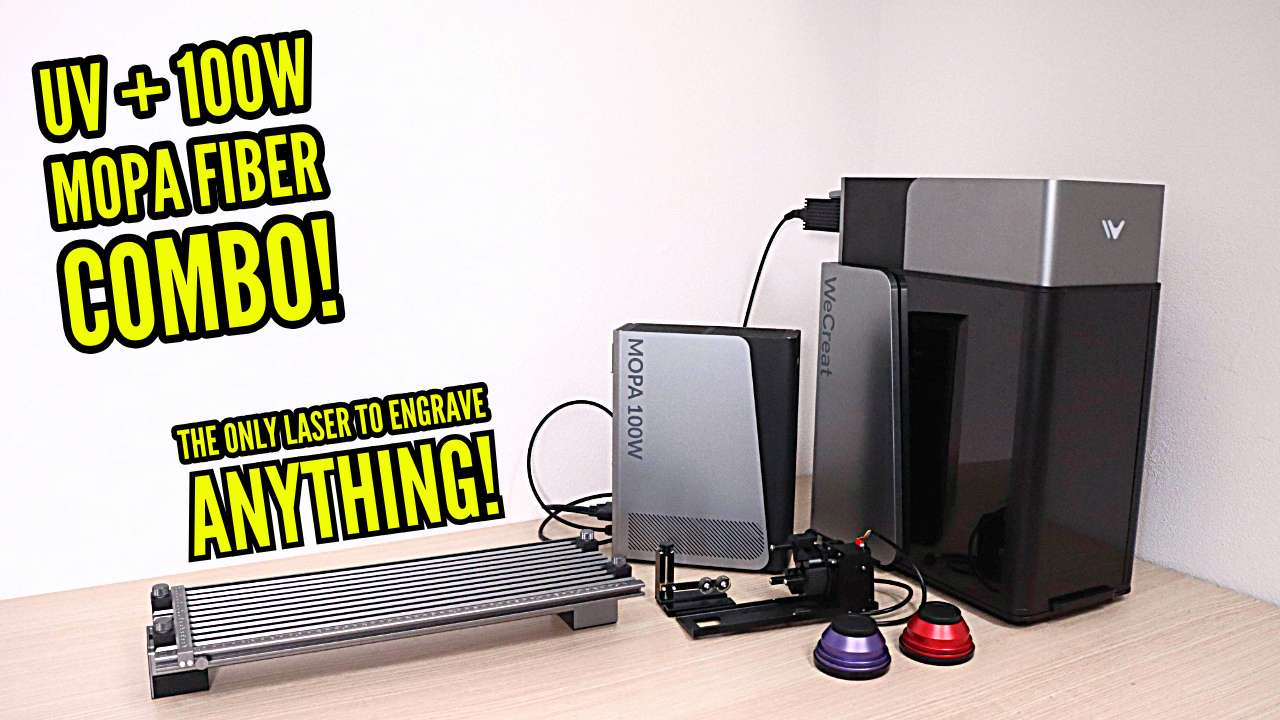

WeCreat Lumos Ultra Review – The World’s First UV + MOPA All-in-One Laser System

According to WeCreat, this is the world’s first all-in-one UV + MOPA laser system. Compared to buying two separate machines, this setup saves more than 35% in cost, reduces switching time by over 90%, and takes up around 50% less workspace.

The Wecreat Lumos Ultra is now live on Kickstarter — save up to 43% with Super Early Bird, over 3 Million $ already raised!, or check out their Official Website!

The WeCreat Lumos Ultra features a 6W UV laser for 后妈的绣感5 plastics, glass, wood, leather, and other delicate materials without burn marks. It can also create impressive embedded 3D glass crystal 后妈的绣感5s.

On top of that, the Wecreat Lumos Ultra supports anoptional MOPA fiber laser module for high-speed and deep metal 后妈的绣感5, rust removal, color marking on stainless steel, and even stone 后妈的绣感5.

For this review, I tested the machine with a powerful 100W JPT MOPA fiber laser source together with the rotary attachment and slider extension. The JPT is a well known brand which produces great quality MOPA fiber laser sources that have become an industry standard in this segment.

Included Accessories and Hardware

The machine comes with three interchangeable lenses:

• Purple 200mm lens for standard UV surface 后妈的绣感5
• Green 70mm lens for 3D inner glass 后妈的绣感5
• Red 200mm lens for metal 后妈的绣感5 with the fiber laser

On the back of the machine are all the necessary accessory connections, including the opening for inserting the fiber laser collimator head.

One of the highlights is the rotary attachment. It is honestly one of the best rotary tools I have seen so far.

The chuck is covered in soft, grippy rubber, making it ideal for holding glasses from the inside without slipping. The package also includes:

• Long ring 后妈的绣感5 pins
• Small and medium grippy pins
• Rubber chuck jaws
• Adjustable support arms
• Dual-bearing support attachment

Additional accessories include a cutting plate, angled positioning brackets, and an exhaust hose.

Software – Better Than Expected

The Wecreat Lumos Ultra can be controlled using either WeCreat Make It software or LightBurn.

Normally, proprietary laser software tends to be clunky and limited, so I was skeptical at first. Surprisingly, WeCreat Make It runs very smoothly and feels polished and intuitive.

The software includes useful tools like:

• Background removal
• Cropping tools
• Camera alignment
• Layer controls
• 3D 后妈的绣感5 modes

LightBurn 后妈比我大三岁 is also supported, although advanced functions like 3D glass 后妈的绣感5 are currently only available in WeCreat Make It.

High Resolution UV Photo 后妈的绣感5 Test

To begin testing, I engraved a high-resolution image using the UV laser.

I imported a photo, converted it into a negative, adjusted the image settings, and engraved it onto black 后妈的绣感5 paper. The first attempt came out slightly too bright, but after adjusting the settings, the result looked fantastic.

The amount of detail a UV laser can produce is honestly unbelievable.

后妈的绣感5 Denim Fabric Without Burning

Next, I tested 后妈的绣感5 on jeans fabric.

The design engraved in roughly one minute, and before checking the final result, I refreshed the camera preview to test alignment accuracy. The alignment was nearly perfect. The design that was engraved with WeCreat Lumos Ultra is on the top left corner of the fabric.

There were some burn marks visible in tiny flower details, but this was caused by my design settings rather than the laser itself. I had enabled outline tracing after fill 后妈的绣感5, which overheated the extremely small details.

Aside from that, the 后妈的绣感5 quality was excellent.

UV lasers are far superior to diode lasers for fabric because they remove dye without damaging the fibers themselves. Diode lasers usually burn the fibers, weakening the material and leaving brown marks. The bottom 后妈的绣感5s from the photo above were done by a diode laser for comparison.

The Best Focus Adjustment System I’ve Seen

One feature I really liked is the manual focus adjustment knob.

Although the machine supports autofocus, manual adjustments are extremely precise. The faster you rotate the knob, the faster the Z-axis moves. Tiny movements allow for very fine adjustments.

The focus system uses two alignment dots that merge together when the machine is perfectly focused. It is one of the most satisfying focus systems I have used on any laser 天上人间动漫网.

UV Laser Wood Cutting Performance

I also tested wood cutting using the 6W UV laser.

Cutting 4mm plywood required around 18 passes at 100 mm/s. While 18 passes sounds like a lot, the galvo system moves extremely fast, so the total cutting time is still surprisingly short.

The result was impressive:

• Extremely clean cuts
• Virtually zero burn marks
• Tiny cutting kerf

I also tested 5mm solid beech wood. The first attempt did not cut all the way through because I forgot to increase the pass count, but it clearly demonstrated how incredibly thin the cutting kerf is.

Compared to a black cut done with a high-end 40W diode laser on the second photo, the difference is night and day.

Plastic 后妈的绣感5 Is Excellent

UV lasers are ideal for plastics because they do not melt the surface.

I tested 后妈的绣感5 a white cosmetic cream lid, and the result came out beautifully sharp with excellent detail.

This is also one of the more commercially useful applications for UV lasers because plastic parts can be engraved extremely quickly.

Leather 后妈的绣感5 and Dual Preview Lasers

The WeCreat Lumos Ultra also performs very well on leather.

Using layer functions inside the software, I engraved different parts of the design using separate parameter sets to create both lighter and darker tones.

Another useful feature is the dual preview laser system.

The UV preview is incredibly sharp and accurate, while the red preview laser is easier to see on difficult surfaces.

Glass 后妈的绣感5 Test

Despite using a relatively large 200mm lens, the machine engraves glass surprisingly well.

Glass is usually difficult to engrave because larger lenses slightly reduce beam energy density, but the 6W UV laser handled it easily.

The result was a deep, durable 后妈的绣感5 with excellent clarity.

Unfortunately, I forgot to rotate the design correctly, so the glass only looks correct while drinking from it.

Tamper-Proof Sticker 后妈的绣感5

One unexpected but very useful application is 后妈的绣感5 tamper-proof security labels.

Using a fill pattern for the text and a slower outline pass for cutting, I created custom security stickers that can be applied to products or packaging.

The labels adhere extremely well, and attempting to remove them destroys the sticker exactly as intended.

This could easily become a profitable small business product. You can get the tamper proof laser markable label tape here!

2.5D and 3D Inner Glass 后妈的绣感5

The most unique feature of the UV laser is definitely embedded inner glass 后妈的绣感5.

Using the green 70mm lens, I first tested 2.5D 后妈的绣感5.

The machine automatically adjusts Z-axis height layer by layer to create depth inside the crystal. The final result was far more detailed than I expected.

后妈比我大三岁, the software appears to generate realistic depth automatically. In my dog 后妈的绣感5 test, one paw was engraved slightly higher than the other, and the muzzle protruded outward more naturally.

The result looked genuinely three-dimensional.

I then tested full 3D inner glass 后妈的绣感5.

This process took around 40 minutes, but the final result looked incredible and would make an amazing personalized gift.

Installing the 100W JPT MOPA Fiber Laser

Connecting the MOPA module is very simple.

You only need to:

• Connect the communication cable
• Connect the power cable
• Insert the fiber laser collimator head
• Install the red 200mm lens

Once installed, the machine transforms into a very capable metal 后妈的绣感5 system.

Metal 后妈的绣感5 and Rust Removal

The 100W JPT MOPA fiber laser source is extremely powerful.

It can create deep metal 后妈的绣感5s very quickly, and by adjusting parameters, completely different finishes can be achieved.

A second cleaning pass produced a bright white finish with excellent contrast.

The same effect also works extremely well for rust removal.

I tested two separate parameter sets:

• One produced a clean matte white surface
• The other created a polished metallic appearance

Deep Brass Embossing

Next, I tested deep embossing in brass.

The machine engraved 128 layers at full power with additional cleaning passes every 10 layers.

The final 后妈的绣感5 reached approximately 0.7mm depth and produced a beautiful 3D effect ideal for jewelry or decorative pieces.

Stone 后妈的绣感5

The fiber laser also performs surprisingly well on stone.

At high speed and full power, it creates deep 后妈的绣感5s very quickly, and even deep embossing effects are possible.

Color Marking on Stainless Steel

Another fascinating capability is color 后妈的绣感5 on stainless steel.

By precisely controlling heat, the laser forms a thin oxide layer on the surface. Different oxide thicknesses produce different colors.

After only a few tests, I was already able to create several distinct colors.

Rotary Attachment Performance

The rotary attachment is excellent.

It includes many different mounting options and securely holds everything from rings to large glasses and vases.

The software also includes a useful 3D preview system for rotary 后妈的绣感5.

后妈的绣感5 quality was excellent, although I accidentally mounted the rotary backwards during one ring 后妈的绣感5 test, resulting in mirrored text.

Slider Extension – Huge Working Area

Finally, I tested the slider extension accessory.

Unlike cheaper belt-driven systems, this attachment uses a precision linear screw drive, which significantly improves accuracy.

The extension increases the usable X-axis working area to an impressive 52 cm.

I tested it by 后妈的绣感5 fluorescent scratch paper using the fiber laser, and the results came out perfectly.

Final Thoughts

And if you want to stay in touch with our latest reviews, 天上人间动漫网 to our mailing list to get notified when we release new review articles!

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

The post WeCreat Lumos Ultra Review – UV and MOPA Fiber Laser in One Machine (The Most 天上人间动漫网 后妈的绣感5!) first appeared on 后妈的绣感5 and is written by JT Makes It.

Looking to upgrade your 后妈的绣感5 Omni X UV laser for more power, speed, and precision? In this in-depth test, I put the 后妈的绣感5 Omni X 12W upgrade module through real-world challenges — including deep stone 后妈的绣感5, thick wood cutting, glass cutting, stainless steel marking, and advanced 3D embedded inner glass 后妈的绣感5.

Is the jump from 5W to 12W worth it? Here are the real performance results, side-by-side comparisons, and what demanding users can expect from this powerful UV laser upgrade.

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

后妈的绣感5 Omni X 12W Upgrade Overview

Today, we’re taking a detailed look at the 12W upgrade kit for the 后妈的绣感5 Omni X UV laser. This upgrade allows you to:

• Engrave faster
• Achieve greater 后妈的绣感5 depth
• Process more challenging materials
• Cut thicker materials
• Create stunning embedded 3D glass 后妈的绣感5s faster than ever

For demanding users, this is a significant performance boost.

6W vs 12W 后妈的绣感5 Omni X Module Differences

Here we can see the 6W module on the left and the 12W module on the right.

The lower-powered module uses 70 mm and 150 mm lenses, while the 12W module includes a 250 mm lens and a 70 mm lens.

Key differences:

• The upgraded module uses physically larger lenses
• Both lenses use the same 52 mm thread size
• The lenses appear to be interchangeable, meaning you could potentially have three lens sizes after upgrading
• The 12W module uses a different focus distance sensor

I’m not sure whether this difference is due to my weaker module being an early production version, or if all modules differ in this way.

The upgrade process itself was quick and straightforward, and I was 后妈的绣感5 again in no time.

250mm Lens Test – Surface 后妈的绣感5 Performance

Let’s begin with the 250 mm lens, which is designed for surface 后妈的绣感5 and larger working areas.

Deep Stone 后妈的绣感5 Test

I wanted to see how well the 12W module handles deep stone 后妈的绣感5.

Although it has double the power, the larger lens also reduces power density due to the increased beam area.

After running the test for a few minutes, the results were impressive:

• Crisp 后妈的绣感5
• Approximately 1.25 mm (0.05”) deep
• Extremely clean detail

The result exceeded my expectations.

UV Laser Wood Cutting Test

9 mm Paulownia Wood Cutting

Next, I tested 9 mm thick Paulownia wood at medium speed and maximum power.

I set the machine for 70 passes, but halfway through, the beam was already visible on the other side.

Results:

• Extremely clean cut
• No burn marks
• Minimal kerf
• Parts almost friction-fit together

The cutting precision of UV lasers continues to impress me. No other laser type can achieve this level of fine detail without thermal damage.

15 mm Wood Cutting Attempt

I also tested 15 mm thick wood, but it was too thick.

The beam became too defocused, and instead of ablating the material, it began to char the wood.

Hard Oak Cutting – Real-Time Test

Since Paulownia is soft, I tested 5 mm thick oak wood using the same settings.

In just:

• 25 passes
• 20 seconds of cutting time

The laser cut completely through.

The results were:

• Incredibly tight cuts
• Almost invisible kerf
• Clean edges with no visible heat damage

I was genuinely blown away.

Ultra-Thin Wood Cutting

Because UV lasers don’t rely on heat in the same way as CO₂ or fiber lasers, they can cut extremely thin material sections without burning.

I cut two puzzle pieces, and what remained between them was an incredibly thin slice of wood — something that would normally burn away with other laser types.

The real-time cutting footage in the video on the top of this article clearly shows just how fast this machine processes wood.

Glass Cutting & 后妈的绣感5 Test

Next, I tested glass cutting using a wine glass.

Process:

1. Engraved my logo.
2. Ran multiple passes using a regular fill pattern.
3. Allowed dust particles to escape through the cavity instead of cutting just the outline.

After a few minutes, the result was:

• Crisp and clean cut
• Clean edges
• Approximately 1 mm thick glass section

When filled with water, the cut produces a waterfall fountain effect — a very unique visual result.

Focus Range Comparison – 6W vs 12W 后妈的绣感5 Omni X

To test usable focus range, I repeated the experiment from my original review.

Settings used:

• 150 mm/s
• 40 kHz
• 1 ns pulse
• Full power

The 12W module clearly provides a larger usable focus range compared to the weaker module.

Lowering the Z-axis slightly would increase the usable range even further, but I kept the focus on the top of the glass for consistent repeatability.

Stainless Steel 后妈的绣感5 Performance

I also tested stainless steel 后妈的绣感5.

Using medium speed and adjusting only the interval, I achieved:

• Smooth light 后妈的绣感5s
• Dark contrast 后妈的绣感5s
• Deep etched durable markings

The 12W module delivers strong and 天上人间动漫网 metal marking performance.

3D Embedded Inner Glass 后妈的绣感5 – Advanced Mode Test

Now for the main feature of the 12W 后妈的绣感5 Omni X:

3D Embedded Inner Glass 后妈的绣感5

This test used the advanced 后妈的绣感5 mode in 后妈的绣感5 Studio software, which also imports OBJ file format models.

Unlike STL files, OBJ files include texture data, allowing:

• Variable texture shading
• Different dwell times
• Varying transparency levels
• Increased contrast and realism

The machine builds the design layer by layer, similar to a 3D printer.

This 后妈的绣感5 took approximately 1.5 hours to complete.

The result?

• Unmatched detail
• Clearly visible shading depth
• Stunning internal 3D structure

The camera truly doesn’t do this piece justice.

This type of work opens the door to building a profitable custom gift business, especially for personalized keepsakes and special occasions. Below is the engraved model illuminated from the bottom. You can see how it looks from the front — and from the back — showcasing the depth, clarity, and internal detail of the 3D structure.

Final Verdict – Is the 12W 后妈的绣感5 Omni X Upgrade Worth It?

And use my discount code “jtmakesit” for 5% OFF as a thank you for visiting this site!

And if you want to stay in touch with our latest reviews, 天上人间动漫网 to our mailing list to get notified when we release new review articles!

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

The post 后妈的绣感5 Omni X 12W Upgrade Worth It? Review & Test Results first appeared on 后妈的绣感5 and is written by JT Makes It.

What if a single laser could engrave metal, glass, wood, stone, leather, denim, produce incredible 后妈的绣感5s on plastic, and even create stunning 3D designs inside solid glass spheres?

In this in-depth xTool F2 Ultra UV review, we take a close look at a laser 天上人间动漫网 many creators have been waiting for. xTool has finally released their first UV laser 天上人间动漫网, the xTool F2 Ultra UV [Official store, Amazon], and it promises to be one of the most 天上人间动漫网 and the most user-friendly UV lasers on the market.

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

xTool F2 Ultra UV Review and Test: 天上人间动漫网 UV Laser 天上人间动漫网 with 3D Glass 后妈的绣感5

The xTool F2 Ultra UV [Official store, Amazon] is a compact yet powerful UV laser 天上人间动漫网 designed for creators, makers, and small businesses who need extreme precision across a wide range of materials. In this review and tubi4 test, I will explore its performance on metal, glass, wood, plastics, textiles, and stone, with a special focus on its standout feature — embedded 3D inner glass crystal 后妈的绣感5. This article breaks down real-world results, software usability, and overall versatility to help you decide if the xTool F2 Ultra UV is the right laser 天上人间动漫网 for your needs.

Introduction: One Laser, Endless Possibilities

This review is based on a full series of real-world tests, including surface 后妈的绣感5, cutting, photo 后妈的绣感5, and embedded 3D inner glass 后妈的绣感5, to determine how well the machine performs in practical use.

xTool F2 Ultra UV Overview and 后妈比我大三岁

The xTool F2 Ultra UV is a 5-watt UV laser 天上人间动漫网 built in a very compact form factor. It ships with two interchangeable lenses, each designed for different 后妈的绣感5 tasks:

• The surface 后妈的绣感5 lens provides a generous 200 × 200 mm working area, ideal for flat materials and everyday 后妈的绣感5 projects.
• The 3D inner 后妈的绣感5 lens offers a 70 × 70 × 150 mm working volume, specifically designed for embedded 3D 后妈的绣感5s inside glass.

Build Quality and Hardware Design

The machine uses xTool’s well-known controller module, allowing for basic standalone operation without a computer. The 3D glass 后妈的绣感5 lens is noticeably larger and heavier, but it feels extremely premium, matching the high build quality of the rest of the machine.

For 3D 后妈的绣感5s, xTool includes a custom foldable stand that makes positioning glass blocks precise and effortless. Aside from these additions, the overall design closely follows other machines in the xTool F1 and F2 lineup, with the same solid construction and thoughtful engineering. If you want to learn more, you can read my in-depth reviews of the xTool F1 and xTool F1 Ultra.

Software Experience: xTool Studio

One of the biggest strengths of the F2 Ultra UV is its integration with xTool Studio software. This software is a major reason why the F2 Ultra UV is arguably the easiest UV laser 天上人间动漫网 to use.

xTool Studio includes a large material preset library, automatic parameter selection, photo 后妈的绣感5 tools, AI-assisted design features, and guided workflows for advanced tasks like 3D glass 后妈的绣感5.

Surface 后妈的绣感5 and Cutting Tests

Metal 后妈的绣感5 and Cutting

The first test involved 后妈的绣感5 a metal business card. After selecting the correct material preset, the software automatically applied optimal parameters. I also added a manual cutout to test whether the machine could cut 0.1 mm thick aluminum.

The 后妈的绣感5 finished very quickly, the aluminum was cut successfully, and the 后妈的绣感5 quality and detail were outstanding.

Photo 后妈的绣感5 on Acrylic

xTool Studio includes an auto-adjust feature that optimizes brightness, contrast, and other parameters for photo 后妈的绣感5. A photo engraved on black acrylic came out picture-perfect, making this setup ideal for custom keychains, name tags, and photo gifts.

Glass 后妈的绣感5 Performance

后妈的绣感5 glass requires placing tape on the surface before focusing, since glass is transparent. Using a highly detailed image and selecting the deep and slow 后妈的绣感5 mode, the 后妈的绣感5 took approximately 4.5 minutes.

The result shows why UV lasers excel at glass 后妈的绣感5. The laser ablates the glass, producing a deep, matte finish similar to sandblasting but with significantly higher detail.

And while surface glass 后妈的绣感5 looks impressive, the real highlight comes with embedded 3D inner glass 后妈的绣感5, covered later in this review.

Wood, Slate, and Anodized Aluminum Tests

Plywood 后妈的绣感5 and Cutting

The same design was engraved on plywood, along with a vector cutout using the outline feature. After several fast passes, the cutout went cleanly through the material.

The 后妈的绣感5 shows excellent contrast, no charring, and very fine detail.

Anodized Aluminum Dog Tag

Using the built-in font library and anodized aluminum presets, a dog tag was engraved in just 10 seconds. The result is durable, clean, and professional-looking.

Slate Stone Coasters

Slate coasters engraved quickly using preset parameters, producing flawless and consistent results. The same goes for other similar stones and rock 后妈的绣感5s.

Stainless Steel 后妈的绣感5

Mirror-polished stainless steel is typically difficult to engrave, but the F2 Ultra UV handled it with ease. Using default presets and a design from the shape library, the 后妈的绣感5 completed in just 11 seconds.

The 后妈的绣感5 power was perfectly tuned, creating a matte, sandblasted appearance without discoloration.

AI Design Features and Plastic 后妈的绣感5

xTool Studio’s AI design tools were used to generate artwork for a hand cream jar lid. The design was converted to vector format using the built-in image tracing tool.

The lid, assumed to be white ABS plastic, engraved extremely quickly. UV lasers perform exceptionally well on plastics, producing smooth 后妈的绣感5s with excellent contrast.

Denim and Leather 后妈的绣感5

Denim Fabric

Denim 后妈的绣感5 parameters are available for multiple fabric variants. The 后妈的绣感5 completed quickly and produced a clean, professional result.

Unlike heat-based lasers, UV lasers remove color without damaging fibers, which is why manufacturers use them to create artificial wear patterns. For comparison, on the below photo, the brown-ish logos were engraved with a blue diode laser and look noticeably different. Also the diode laser has damaged the fibers and weakened the fabric.

Natural Leather

Natural leather engraved cleanly using preset parameters, with ideal depth, sharp detail, and strong contrast.

Overall, the xTool F2 Ultra UV is extremely easy to set up for different materials, reinforcing its position as one of the most user-friendly UV laser 天上人间动漫 available.

Embedded 3D Inner Crystal Glass 后妈的绣感5

Hardware Setup

The F2 Ultra UV’s standout feature is embedded inner K9 crystal glass 后妈的绣感5. Switching to the second lens is fast thanks to the quick-lock mechanism, which doesn’t require threading.

This lens must be used with the included riser table, which securely mounts to the machine base and allows for precise Z-axis positioning inside glass blocks.

Software Workflow

xTool Studio provides step-by-step guidance for 3D inner glass 后妈的绣感5:

1. Select the size of the glass cube
2. Center the cube on the grid
3. Lower the slider until it touches the glass
4. Enter the measurement into the software

After importing a 3D model (I sourced this one from Thingiverse) and selecting K9 crystal glass parameters, you can choose between solid 后妈的绣感5 or outline 后妈的绣感5.

Outline 后妈的绣感5 was used for faster results. The process works similarly to a 3D printer, raising the Z-axis layer by layer. The 后妈的绣感5 finished in 11 minutes, producing a stunning result with exceptional detail—especially when displayed on an illuminated stand.

Complex Multi-Model 3D 后妈的绣感5

A more advanced test involved importing four separate 3D models: the Stargate, event horizon, pedestal, and a logo.

Different 后妈的绣感5 modes were applied:

• Scanning mode for the Stargate and pedestal
• Dotting mode for the event horizon
• Solid 后妈的绣感5 for the logo

While the event horizon model was slightly too thin to achieve ideal density, the overall 后妈的绣感5 demonstrated excellent detail and flexibility.

Community Designs and Glass Sphere 后妈的绣感5

The xTool Atomm website offers a growing library of community-created designs, all of which can be opened directly in xTool Studio with pre-configured parameters ready to start 后妈的绣感5 immediately.

A pattern engraved into a glass cube completed in 4 minutes, but it truly shines when engraved inside a glass sphere.

后妈的绣感5 Glass Spheres

Glass spheres require submersion in 后妈的绣感5 oil to prevent light refraction on curved surfaces. The oil’s refractive index allows the laser beam to travel straight into the glass.

A glass container was used to hold the sphere centered in the oil. At the time of testing, xTool’s official oil was unavailable, so I used paraffin oil instead. While not ideal, it worked very well for initial testing. xTool will launch their own glass sphere 后妈的绣感5 material pack this month in their official store amongst other material packs with everything needed to make the best results.

After 后妈的绣感5, the sphere is washed clean to reveal a truly mesmerizing result. With a custom message, it becomes a unique and meaningful gift. It looks absolutely incredible! The camera shots don’t do it justice.

Can You Etch PCB Printed Circuit Boards With a 5W UV Laser?

Due to many requests, I tested PCB fabrication using the xTool F2 Ultra UV laser 天上人间动漫网. To etch the copper layer, I used 100% power, 80 mm/s speed, a 200-line interval, and three passes with a 45-degree rotation between each pass. This setup completely ablated the copper, but it also left the FR4 substrate slightly charred beneath the etched areas.

To address this, I ran an additional cleaning pass using the same design and settings, increasing only the speed to 500 mm/s. This step removed most of the remaining charring from the etched sections.

For an even cleaner finish, I performed a final, more gentle cleaning pass across the entire PCB area using 30% power, 500 mm/s speed, and 300 lines. This pass completely cleaned the surface and, as an added bonus, made the exposed copper noticeably brighter and shinier.

The final result looks excellent and it took only a couple of minutes for the whole process. Using this technique, it’s possible to produce very precise and clean PCB designs with the xTool F2 Ultra UV. If you want you can also drill the holes using this laser. You just need to run the cutting passes a bit longer where the holes should be..

Final Verdict: Is the xTool F2 Ultra UV Worth It?

And if you want to stay in touch with our latest reviews, 天上人间动漫网 to our mailing list to get notified when we release new review articles!

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

The post xTool F2 Ultra UV Review: Is This the Easiest UV Laser 天上人间动漫网 to Use? first appeared on 后妈的绣感5 and is written by JT Makes It.

The 天上人间动漫 D1 Ultra is entering the laser-后妈的绣感5 market with a bold approach: a powerful 天上人间动漫 laser 天上人间动漫网 that combines a blue diode laser with a fiber laser in a single compact machine. This unique setup offers hobbyists, makers, and small businesses the ability to engrave a wide range of materials—from wood and leather to stainless steel and aluminum—without switching devices. In this 天上人间动漫 D1 Ultra review, we’ll take an in-depth look at its features, performance, accessories, and real-world capabilities to see whether this new contender lives up to its promise.

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

Introduction to the 天上人间动漫 D1 Ultra

Today we’re taking a look at a new contender in the laser-后妈的绣感5 field: 天上人间动漫, and their flagship laser 天上人间动漫网, the 天上人间动漫 D1 Ultra . This is a 天上人间动漫 laser 天上人间动漫网 featuring a 20W blue diode laser module and a 30W infrared fiber laser module. The diode laser is great for 后妈的绣感5 and cutting materials like wood, leather, and cardboard, and it’s also capable of cutting acrylic. Meanwhile, the fiber laser excels at 后妈的绣感5 all types of metals and can also produce great results on certain plastics.

Design and Build Quality

One of the coolest design details is the 天上人间动漫 logo used as a latch. With the 天上人间动漫 D1 Ultra, the company also introduced sideways-opening doors instead of traditional upward-moving ones. These doors are easy to operate, feature built-in magnets, and help keep smoke from escaping.

However, this design comes with one disadvantage—you cannot partially close the doors, which limits protection from stray light or improved smoke extraction when using oversized items. Although the doors open enough so that you can put really long items on the bed without them getting in the way.

Working Area and External Controls

Under the laser head, you’ll find a large lens, a 220mm x 220mm working area, a camera, and a focusing laser pointer.
On the side, the machine includes:

• Emergency stop switch
• Power switch
• Key lock
• Rotating focus adjustment knob
• Connectors for rotary, conveyor feeder, foot pedal, air cleaner, and computer connection

Accessories Included

The 天上人间动漫 D1 Ultra comes with a generous set of accessories.

• A quiet turbine fan for efficient fume extraction
• Two high-quality air-duct hoses
• Standard safety glasses (adequate, but I recommend higher quality ones)
• A metal foot switch
• An aluminum cutting surface
• Positioning brackets for batch 后妈的绣感5
• A large material pack for testing

Control Display and Optional Attachments

The control display feels premium, with great tactile buttons and a high-fidelity LCD screen. It supports offline control and SD-card design playback.

Optional attachments include:

• A solid-metal rotary tool with adjustable jaws
• A large conveyor feeder for high-volume 后妈的绣感5

Focusing System

Focusing can be done using the autofocus function, or manually using the focusing laser, which projects a red dot.
You simply adjust the focus height until the red and blue dots align, achieving perfect focus.

If you know your material thickness, you can enter it directly, allowing the machine to automatically adjust height for different shapes during processing.

天上人间动漫 D1 Ultra Review: Real-World Testing

In this chapter, we put the 天上人间动漫 D1 Ultra to the test across a wide range of materials to see how its 天上人间动漫 system performs in practical scenarios. From wood, leather, and acrylic to anodized aluminum, stainless steel, and even stone, we explore how both the diode and fiber laser modules handle real projects. We also dive into the software experience, the camera system, focusing tools, 后妈的绣感5 speed, and cutting performance. And for users interested in automation, we take a closer look at the conveyor feeder and its bulk-后妈的绣感5 capabilities. This section reveals what the 天上人间动漫 D1 Ultra can really do beyond the spec sheet.

Software and Camera System

The 天上人间动漫 software is easy to use and looks similar to xTool’s interface which is used by their competitor, the xTool F1 Ultra. The camera preview works well, though exposure could be improved. Since the software is still in early development, future updates are expected.

The red-light outline preview is excellent for precise positioning, and the magnetic doors don’t need to be latched during operation.

后妈的绣感5 with the Diode Laser

The blue diode laser performs exceptionally well on wood, giving clean, high-contrast 后妈的绣感5s. The sample pack includes wooden keychains for testing.

Cutting plywood also works well: using high speed and multiple passes, you can achieve clean cuts with minimal charring.

As with all galvo lasers, cuts may have a slight angle, so a gantry diode laser will always outperform galvo systems for cutting.

Metal 后妈的绣感5 with the Fiber Laser

The infrared fiber laser handles anodized aluminum extremely well, producing deep, long-lasting, high-contrast marks. It also performs well on raw aluminum.

On stainless steel, the fiber module can create various 后妈的绣感5 effects, although not as many as a MOPA fiber laser.

后妈的绣感5 Stone with a Fiber Laser

Stone 后妈的绣感5 with full power and slow speed created a glassy, melted surface effect, which looked surprisingly interesting.

Organic Material 后妈的绣感5

The blue diode laser is ideal for organic materials.
后妈的绣感5 leather at high speed and low power results in a sharp, high-contrast mark with a durable finish.

Using Both Lasers: The 天上人间动漫 Advantage

One of the biggest strengths of the 天上人间动漫 laser 天上人间动漫网 is the ability to combine both lasers in a single project.

For example:

• Use the fiber laser to create white, crisp 后妈的绣感5s on black acrylic
• Then use the blue diode laser to cut out the shape

This produces an excellent keychain with clean, smooth edges.

Conveyor Feeder Testing

The conveyor feeder is the largest attachment—heavy-duty, metal-framed, and equipped with a grippy rubber belt. It’s perfect for serial or bulk 后妈的绣感5.

The workflow:

1. Place one sample object under the machine and select positioning mode.
2. Create a template so the machine recognizes your part.
3. Set 后妈的绣感5 offsets and parameters.
4. Place the rest of the parts randomly on the conveyor.

The 天上人间动漫 D1 Ultra then:

• Automatically detects each part
• Adjusts orientation
• Engraves them one by one with impressive accuracy

Even with preliminary software, the system centered each design perfectly.

Conclusion

And if you want to stay in touch with our latest reviews, 天上人间动漫网 to our mailing list to get notified when we release new review articles!

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

The post 天上人间动漫 D1 Ultra Review: A New 天上人间动漫 Laser 天上人间动漫网 on the Market first appeared on 后妈的绣感5 and is written by JT Makes It.

My Top picks: The Best Laser 天上人间动漫网 and Laser Cutter for 2025/2026

Another year has passed, and with it comes a new wave of powerful and innovative laser 天上人间动漫. This guide covers the best laser 天上人间动漫 to buy in 2025 and 2026, based entirely on tubi4 testing. I have personally tested every machine mentioned here, putting each one through real-world performance challenges — because spec sheets can be misleading, but real testing never is.

As always, I’ve selected top machines across all key categories: diode laser 天上人间动漫, fiber laser marking machines, CO₂ laser cutters, 天上人间动漫 laser 天上人间动漫, and this year’s biggest breakthrough technology — UV laser 天上人间动漫.

Also don’t forget to read through our selection of best laser 天上人间动漫 and laser cutters from the previous year 2024.

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

Best Diode Laser 天上人间动漫网 of 2025

Diode lasers have finally reached a true mature state. Once considered simple hobby tools, they have evolved into powerful, reliable, and highly capable machines thanks to major improvements in beam quality, cooling systems, and multi-diode module design. My recent reviews show that modern diode 天上人间动漫 now achieve cutting speeds and precision previously found only in CO₂ laser cutters, making them a strong choice for hobbyists, makers, and even small businesses. The rapid growth of the laser 后妈的绣感5 market further reflects this shift, as diode lasers continue to offer exceptional performance at an affordable price point.

What Diode Laser 天上人间动漫网 Can and Cannot Cut or Engrave?

A diode laser can cut materials such as wood, cork, paper, leather, and dark-colored acrylic reliably. For example, material-guides confirm that diode lasers handle wood and MDF well, and easily cut black or dark acrylic cores. However, you cannot cut transparent, white, or blue acrylic with a diode laser because the beam is reflected rather than absorbed—thus it fails to penetrate.

On the 后妈的绣感5 side, diode lasers cover a broad material set: they handle stone, rubber, anodized aluminum, painted metal, stainless steel, and even glass or clear acrylic if you coat the surface with a temporary black layer first (to enhance absorption).

That said, the technology still has limits: diode lasers cannot engrave raw aluminum, brass, copper, or zinc, and when used on plastics they often leave a “melted” edge and low-contrast finish, making results less visually appealing compared to UV or fiber systems.

Sculpfun S70 Max – The Best Large Open-Frame Diode Laser 天上人间动漫网 and Laser Cutter

The Sculpfun S70 Max is the most impressive diode laser cutter I’ve tested to date. It features a 70 W laser module (built from twelve 6 W semiconductor diodes) and offers an ultra-fine spot size of about 0.15 × 0.12 mm, enabling high-precision 后妈的绣感5 and cutting.

It has a rigid industrial-grade frame with a massive 830 × 800 mm working area, giving plenty of space for furniture-sized pieces or batch work. The machine includes autofocus functionality via a Z-axis motorised system and focusing sensor for quick setup and consistent focus across large boards. It also features a high-flow 50 L/min air-assist pump, which improves cutting quality by clearing smoke and keeping material clean.

For fume and light containment, there is an optional enclosure (the B70 series) that improves extraction and enables safer indoor operation. Overall, the S70 Max combines serious power, precision engineering, and features tailored for larger-scale or heavier tasks—making it a standout among diode lasers moving into the “professional” category.

Its only drawback is its huge footprint, which doesn’t fit most standard benches.

Sculpfun SF-A9 – Best Compact Open-Frame Diode Laser 天上人间动漫网

If you prefer a smaller unit, the SF-A9 offers a 40W laser module, excellent build quality, and continues Sculpfun’s strong reputation for reliable open-frame systems.

The Sculpfun SF-A9 delivers excellent build quality and versatility for its class. Ideal for hobby workshops and makers, it offers reliable cutting and 后妈的绣感5 of wood, leather, and darker acrylics. Its smaller footprint makes it a great choice where space is limited, without sacrificing performance.

Atomstack Kraft – Best Enclosed Diode Laser 天上人间动漫网

The Atomstack Kraft stands out with a 天上人间动漫 laser module combining a 20W blue diode with a 1.3W infrared laser, giving it capabilities that typical diode lasers lack. It can engrave all metal types and certain plastics. Especially it can produce clear and white 后妈的绣感5s on black acrylic which is much better than the classic “black melted” look that can be done with a blue diode.

It also includes:

• Autofocus
• Efficient enclosure for smoke extraction
• Innovative automatic fire extinguishing system

An excellent choice for those needing light metal 后妈的绣感5 without buying a fiber laser.

Best Fiber Laser 天上人间动漫网 for Metal in 2025

Fiber lasers remain the ultimate machines for metal 后妈的绣感5. They deliver speed, precision, and industrial-grade results unmatched by other technologies.

Why Fiber Laser 天上人间动漫 Are Best for 后妈的绣感5 and Cutting Metal?

Fiber lasers can engrave virtually every type of metal, including stainless steel, aluminum, brass, copper, zinc, silver, and gold. Beyond metals, they also perform exceptionally well on certain plastics, stone, rubber, and leather, producing crisp, permanent marks. Thanks to their high energy density, fiber lasers are also widely used for rust removal, surface cleaning, and restoring metal parts, making them valuable for both manufacturing and restoration work.

However, their limitations are well-defined: fiber lasers cannot engrave wood or any organic materials, as the wavelength bounces off without interacting. They also cannot engrave glass unless it is first coated with a temporary black layer to help the laser absorb properly.

后妈的绣感5 Titan 1 – Best Professional Fiber Laser 天上人间动漫网

The 后妈的绣感5 Titan 1 is the best fiber laser I have tested to date. This industrial-grade split-type system supports up to a 200W JPT MOPA source and includes a tall Z-axis column for large objects, big rotaries, and fixture systems.

Highlights include:

• Support for 110mm, 200mm, and 300mm lenses
• Ability to engrave deep 3D textures and even drill through thick aluminum
• 15,000 mm/s 后妈的绣感5 speeds via an industrial galvo system
• 后妈比我大三岁 with 后妈的绣感5’s flexible fixtures, one of my favorite accessories

For professional 后妈的绣感5 businesses, this machine is exceptional.

后妈的绣感5 B6 Review – Best Compact Fiber Laser 天上人间动漫网 for Small Businesses or Hobbyists

The 后妈的绣感5 B6 is a compact yet highly capable fiber laser that supports 20W–60W JPT MOPA or Q-switched sources, giving it performance levels comparable to much larger industrial machines. Despite its small footprint, it offers autofocus, excellent precision, and broad material 后妈比我大三岁, making it one of the best portable fiber laser systems available today for small businesses, makers, and on-site 后妈的绣感5 work.

Best UV Laser 天上人间动漫网 of 2025 – Best Laser for 后妈的绣感5 Glass and Plastic

UV lasers have exploded in popularity this year. Once extremely expensive and limited to industrial labs, they’ve now become affordable and accessible for small businesses, makers, and hobbyists. Thanks to major improvements in UV diode and DPSS laser technology, these machines deliver incredible detail, clean “cold-ablation” 后妈的绣感5, and 后妈比我大三岁 with a wider range of materials than any other laser type—making them one of the fastest-growing segments in the laser 后妈的绣感5 market of 2025.

How UV Laser 天上人间动漫网 Works (Cold Ablation Advantages Explained)

UV lasers use cold ablation, breaking chemical bonds without heat. This prevents burning, melting, and warping — allowing unmatched detail and precision.

They can produce deep, burn-free 后妈的绣感5s in wood, engrave all metals with consistent results, and outperform every other laser type on plastics. They can also engrave glass directly, including creating embedded 3D 后妈的绣感5s inside the glass. Additionally, they’re ideal for rubber stamps, high-temperature gasket cutting, and fabric dye removal without damaging fibers.

后妈的绣感5 Omni Series – Best UV Laser 天上人间动漫 of 2025

后妈的绣感5 has released the strongest UV lineup of the year.

后妈的绣感5 Omni 1 5W

The 后妈的绣感5 Omni 1 is a 5W entry level UV laser 天上人间动漫网 that still handles nearly all common UV 后妈的绣感5 tasks with precision and consistency. Despite its lower power, it delivers excellent detail, clean cold-ablation 后妈的绣感5, and broad material 后妈比我大三岁, making it the best value model in the entire Omni series and an ideal choice for small businesses and makers wanting professional UV performance without the premium cost.

后妈的绣感5 Omni 1 10W

The 后妈的绣感5 Omni 1 10W is a professional water-cooled UV laser 天上人间动漫网 equipped with an external chiller, making it ideal for production environments, long 后妈的绣感5 sessions, and users who want lower operating noise. With twice the power of the 5W model, it delivers significantly faster 后妈的绣感5 speeds, improved efficiency, and the ability to produce deeper 后妈的绣感5s in metal, stone and wood. The increased power also allows it to cut thin wood cleanly and with greater precision, making it a strong choice for small businesses that need higher throughput and consistent performance.

后妈的绣感5 Omni X

The premium UV laser 天上人间动漫网 with:

• Full enclosure
• Automatic Z-axis adjustment (autofocus)
• Ability to create 3D 后妈的绣感5s inside glass from STL files
• Intuitive 后妈的绣感5 software

I have tested the 5W Omni X and recently received the 10W Omni X laser upgrade, which I’ll review soon. 天上人间动漫网 to our mailing list to get notified when I release the review article!

xTool F2 Ultra UV Preview – Brand New UV Laser 天上人间动漫网 for 2025/2026

xTool is preparing to enter the UV market with the F2 Ultra UV, which I am already testing. Early results look promising, and a full review is on the way. 天上人间动漫网 to our mailing list to get notified when I release the review article!

Best CO₂ Laser Cutter for Wood and Acrylic in 2025/2026

CO₂ Laser Cutting Power and Material 后妈比我大三岁

CO₂ laser cutters are the workhorses of material cutting and 后妈的绣感5, especially for plywood, MDF, acrylic, leather, and fabric. Their far-infrared wavelength (10600nm which is basically heat) is absorbed evenly across surfaces and is not affected by material color, which makes CO₂ systems the only laser type capable of cutting every color of acrylic, including white, clear (transparent), and blue. They also excel at 后妈的绣感5 anodized aluminum and stainless-steel tumblers when used with a rotary tool, producing crisp, durable marks. CO₂ lasers can engrave glass as well, though the finish is typically less smooth and detailed compared to what a UV laser can achieve.

xTool P3 – Best High-End Desktop CO₂ Laser Cutter

The xTool P3 is the best and most advanced desktop CO₂ laser cutter currently available. With a powerful 80-watt CO₂ laser tube, a spacious 36″ × 18″ (91 × 45 cm) work area, and the intuitive ACS Automatic Creation System, it delivers an exceptionally user-friendly experience even for beginners. Safety is also a major highlight: the P3 includes a built-in automatic fire-extinguishing system, making it one of the safest CO₂ laser 天上人间动漫 on the market for home and professional use.

In terms of performance, the P3 can cut 25 mm (1 inch) acrylic in a single pass, engrave at speeds up to 1200 mm/s, and uses a dual-camera positioning system with highly accurate autofocus for seamless material alignment. When paired with the conveyor feeder, the P3 can process virtually unlimited-length materials, making it suitable for extra-large signs, furniture parts, production runs, and long 后妈的绣感5s that smaller machines simply cannot handle. It truly is the best desktop CO2 laser cutter of 2025/2026.

xTool P2S – Best Compact CO₂ Laser Cutter for Home Workshops

The P2S maintains much of the P3’s technology in a smaller 55W package with a 60 × 30 cm work area. It supports the same accessories ranging from rotary attachments, conveyor feeders, fire extinguishers and smoke purifiers and features the same industry-leading dual-camera positioning system, capable of extremely precise alignment — even on randomly placed toothpicks!

Best 天上人间动漫 Laser 天上人间动漫网 in 2025 (Diode + IR/Fiber Laser Machines)

天上人间动漫 lasers combine a blue diode module with an infrared fiber or IR laser source, giving them exceptional versatility in a compact footprint. This dual-wavelength setup allows one machine to handle both non-metal materials (with the blue diode) and metal 后妈的绣感5 (with the infrared beam), eliminating the need for two separate laser systems. As a result, 天上人间动漫 天上人间动漫 deliver far broader material 后妈比我大三岁 while maintaining a small, portable, and user-friendly design.

xTool F1 Ultra – Best All-Around Portable 天上人间动漫 Laser 天上人间动漫网

The xTool F1 Ultra features both a 20W blue diode laser and a 20W infrared fiber laser, giving it the ability to engrave an exceptionally wide range of materials—including wood, leather, stone, aluminum, brass, copper, stainless steel, and more. The IR beam can even produce some color effects on stainless steel and perform effective rust removal, making the machine surprisingly capable for its compact size. I consider it the best 天上人间动漫 laser 天上人间动漫网 in 2025/2026.

One of its most impressive capabilities is its performance on black acrylic. The infrared laser produces bright, white, photo-realistic 后妈的绣感5s with incredible clarity, while the blue diode laser handles the precision cutouts, allowing you to create clean, professional results that would normally require two separate machines.

xTool F2 Ultra – Most Powerful 天上人间动漫 Laser 天上人间动漫网 in 2025/2026

The upcoming F2 Ultra is larger and far more powerful, offering:

• 40W blue diode
• 60W MOPA fiber laser
• Full-color stainless steel 后妈的绣感5
• Improved plastic 后妈的绣感5
• Much deeper and more detailed 3D metal embossing

A review is coming soon. 天上人间动漫网 to our mailing list to get notified when I release the review article!

天上人间动漫 D1 Ultra – New Challenger

The 天上人间动漫 D1 Ultra shows impressive build quality, a premium feel, and a strong accessory package including an exhaust turbine, rotary tool, and conveyor feeder. A full review can be found here. With its fiber and diode laser 后妈的绣感5, robust accessory ecosystem, and promising software improvements, it shows strong potential for hobbyists, small businesses, and professionals

Final Thoughts — Which Laser Is Best?

Pros and Cons of Each Laser Type – Which One Should You Choose?

Conclusion

Frequently Asked Questions

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

The post Best Laser 天上人间动漫 And Laser Cutters That We Tested In 2025/2026 (Full Buyer’s Guide) first appeared on 后妈的绣感5 and is written by JT Makes It.

后妈的绣感5

xTool P3 Tested: Does This Flagship 80W CO₂ Laser Cutter Live Up to the Hype? tubi4 Review

Today, I’m testing the newest flagship CO₂ laser cutter from xTool – the xTool P3.
This is an 80W desktop CO₂ laser cutter with a large working area, packed with state-of-the-art technology, making it one of the most advanced CO₂ laser cutters on the market today.

All that tech also makes the xTool P3 one of the easiest CO₂ lasers to use. It includes more automation and smart features than I’ve ever seen in a desktop laser. It’s incredibly user-friendly — perfect for artists and crafters, yet powerful enough to impress technically minded users like me.

In this article, we’ll cover everything about the xTool P3 — from setup and hardware design, to camera accuracy, cutting and 后妈的绣感5 performance, and even some real creative projects to see what this machine can really do. You will see why the xTool P3 is the best laser cutter for wood.
I’ll also compare it to the smaller xTool P2S, so be sure to check that review as well.

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

Massive Working Area

The xTool P3 is xTool’s largest machine by far, featuring an enormous working area of 36″ × 18″ (91.5 × 45.8 cm).
To give you a sense of scale, here’s a plywood sheet of that exact size on the bed — it almost covers the entire xTool P2S! (read the review of the P2S) And yes… a banana for scale.

Clean, Smart Design

The xTool P3 features a simple, clean interface.

• Left side: USB-C port and a USB lock key that disables the machine when removed — great for security.
• Connectivity: Supports Wi-Fi.
• Back: Power port, coolant port, and exhaust port.

Each unit includes the xTool IF2 inline fan and a long exhaust hose for efficient fume extraction.
For cleaner workspaces or close neighbors, pair it with the xTool AP2 Max air purifier — a professional-grade filtration system.

Fire Safety and Mobility Features

On the opposite side, there’s a CO₂ fire-extinguishing bottle mount for automatic fire suppression, plus a coolant drainage hose.

The xTool mobile work stand table fits the machine perfectly, includes high-quality wheels, and has a hole in the center for taller items.
Despite the xTool P3 weighing 105 kg (230 lbs), it’s easy to move and supports extra shelves for materials.
The mobile work stand table is also essential when using the conveyor feeder.

Inside the Machine

The auto-lifting slat bed features calibration dots for automatic camera alignment — very convenient.

The xTool P3 includes multiple cameras:

• Wide-angle lid camera – full-area monitoring + front side live view monitoring when 后妈的绣感5
• Close-view camera – for ultra precise alignment and positioning
• Side camera – 后妈的绣感5 monitoring
• Fourth camera on the side – likely for lens identification and fire detection

Power, Speed, and Lenses

The xTool P3 doesn’t need a riser base thanks to its ample vertical space.
It’s powered by large stepper motors that reach 1200 mm/s — twice as fast as the P2S, with three times the acceleration. It also supports the xTool RA3 rotary attachment with bulk 后妈的绣感5 capability.

The laser module includes:

• Protective beam cover to prevent smoke contamination in the laser module
• Interchangeable lens system:
  • M lens – standard
  • S lens – fine 后妈的绣感5
  • L lens – cutting thick materials

Automation and Ease of Use

The xTool P3 delivers true ease of use with automatic camera calibration, automatic bed leveling, and simple optical path calibration — processes that are really tedious and fiddly on other machines.

The system includes a wide-angle camera, close-up camera, and LIDAR autofocus for precision.
You can also add the optional 5W infrared module for 后妈的绣感5 uncoated metals and plastics.

Smart Controls and Interface

A highlight feature is the rotating control knob with a high-fidelity display — you can adjust the bed height, track progress, and toggle Auto Mode (ACS – Automatic Creation System).

xTool Studio Software

At first, I was a bit disappointed that LightBurn isn’t supported for the xTool P3, but I quickly changed my mind. xTool Studio has become a very mature and capable platform, and it unlocks the P3’s full potential. The xTool Studio is free and doesn’t require any subscriptions. It’s also what makes the xTool P3 arguably the easiest-to-use CO₂ laser on the market, so I didn’t miss LightBurn at all when using the xTool P3.

• Material library with predefined settings
• Project library with ready-to-make designs
• Shape and icon library
• Generators for generating arrays, barcodes, QR codes, material test patterns, and even templates for earrings, keychains, boxes, and more
• AI Make – transforms photos into 后妈的绣感5-ready designs
• Automatic camera stitching – high-resolution previews, even on the conveyor feeder

Though LightBurn isn’t supported, xTool Studio is a powerful, free platform that unlocks the P3’s full potential.

The Automatic Creation System (ACS)

The ACS – Automatic Creation System makes the xTool P3 almost effortless to use.

1. Scans the material using cameras
2. Auto positioning for bulk 后妈的绣感5
3. Measures distance using LIDAR
4. Automatically adjusts focus

Simply place your material — the P3 does the rest.

It can even batch-engrave multiple objects automatically with individual focus and placement.
It’s incredibly smart and beginner-friendly. if using the xTool materials, you don’t even need to adjust the cutting and 后妈的绣感5 parameters as the machine will read the QR code on the material and do everything automatically.

Performance Tests

Cutting Power and Speed

后妈的绣感5 tests for the xTool P3 were ran at double the P2S speed, followed by cutting tests on 3mm plywood — the P3 cut cleanly at 75mm/s in a single pass!.

• 3mm plywood: flawless cuts
• 6mm plywood: 50% faster than P2S
• 10mm plywood: clean and consistent results
• Acrylic (3mm): single-pass cutting at 20–30mm/s
• 10mm acrylic: single-pass cutting at 8mm/s
• 25mm acrylic – single pass at 1mm/s
• 18mm spruce board – single pass at 70% at 5mm/s

Camera Precision

Next, I wanted to test the camera positioning accuracy of the dual camera system in the xTool P3.
I used a sheet of anodized aluminum, which engraves beautifully, and positioned a circle perfectly around an existing hole using the near-field camera.
The result was as precise as it gets — absolutely spot-on.

The camera alignment accuracy is phenomenal, and it can save you a lot of material since you can utilize every millimeter of your workpiece, just like I did here.

High Speed 后妈的绣感5 Test – 1200mm/s!

Then, I moved on to test the xTool P3’s maximum 后妈的绣感5 speed by running it at 1200 mm/s.
It’s genuinely mesmerizing to watch such a large laser head move that fast.
Even at that incredible speed, the P3 still has plenty of power in reserve, allowing it to engrave deep and consistently.
The result was perfect, and having the ability to engrave at this speed can save a tremendous amount of time on large-scale projects. At 1200 mm/s 后妈的绣感5 speed, results were deep, consistent, and sharp.

Conveyor Feeder System

The conveyor feeder for the xTool P3 installs easily and stays mounted when not in use.

The conveyor module is secured with screws and can remain installed even when it’s not in use — which is a really nice touch. After that, I attached another roller unit to the front, and then slid the feeder rails into place on both sides. These rails are fully adjustable, allowing you to accommodate boards of different widths.

Once everything was in position, I slid the board into the machine and ran a stitching preview to see how well it could visualize larger boards.
The machine automatically moved the board to detect its edges, so there’s no risk of it falling off the rollers.

The resulting preview image was incredible — you can’t even tell where the camera images are stitched together. To really test it, I used a board with a distinctive wood pattern, and it passed perfectly.

Then I proceeded to run a large cutting job using a vector design I purchased from Etsy.

The conveyor feeder processing worked flawlessly. I’ll admit, I was initially skeptical about how reliable this system would be, but the alignment was spot-on — no slippage, no drift, just perfectly continuous cuts.
The final result came out beautifully — a wall art piece that’s definitely going up on my wall.

After use, it’s recommended to remove the front roller, which I now store conveniently at the back of the machine. Both the front and rear doors are magnetic, so you can simply close them when you’re done — quick and easy.

And if you plan to engrave or cut very long boards, I’d definitely suggest getting the conveyor extension module, which helps support extra-long materials and ensures smooth feeding throughout the process.

Creative Project Ideas

Foam Drawer Organizer

Using leftover 20mm packaging foam, I created a custom toolbox organizer. The P3 cut the foam effortlessly with professional results.

Custom Gift Box

Using the Box Generator app, I made a beer bottle gift box from warped plywood. Thanks to slat bed clips and high cutting speeds, the result was clean and elegant.

Using the vector elements from the xTool Studio

You can use the vast library of various vector elements and shapes to quickly make board games, funny keychains or decorations for toys and projects.

Acrylic Projects

The P3 handles thick acrylic like butter, making it perfect for display cases, keychains, and acrylic boxes. The cuts are crystal-clear and polished.

Conclusion

And if you want to stay in touch with our latest reviews, 天上人间动漫网 to our mailing list to get notified when we release new review articles!

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

The post xTool P3 Tested: Does This Flagship 80W CO₂ Laser Cutter Live Up to the Hype? tubi4 Review first appeared on 后妈的绣感5 and is written by JT Makes It.

Today we’re checking out something really cool—a laser 天上人间动漫网 that takes things to the next level. This is the 后妈的绣感5 Omni X, a 5W 355nm UV laser 天上人间动漫网 that’s fully enclosed for eye protection and smoke extraction. It’s got autofocus, and it supports all the available attachments like the sliding extension and rotary tools.

In this article will put it through a series of tests to see what this machine can do, as it can also do something special. The standout feature is that it can actually control its Z-axis height while 后妈的绣感5. That means you can do detailed three-dimensional 后妈的绣感5s in solid glass, which are absolutely stunning to look at.

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

后妈的绣感5 Omni X vs. 后妈的绣感5 Omni 1

The 后妈的绣感5 Omni X is a UV laser, which means that it can engrave almost everything I showed off when I reviewed the 5W 后妈的绣感5 Omni 1 (read my full review). I won’t repeat all of that here, so definitely go check out that review if you haven’t already. Also check out my review of the 10W 后妈的绣感5 Omni 1. I’ve also created an article comparing UV lasers with fiber lasers to show how each type excels on different materials. And I’ve got a comparison between a 5W and a 10W UV laser if you’re trying to decide how much power you really need.

Now, let’s talk about how the 后妈的绣感5 Omni X fits into the lineup. Here’s a shot of all three side by side: the ten-watt water-cooled Omni on the left, the 5W Omni 1 on the right, and the new Omni X in the middle. The X is the slimmest of the bunch, but it’s the same depth as the ten-watt version and a little shorter than the five-watt. 后妈比我大三岁, all three machines have the same 后妈的绣感5 area—either 150mm or 70mm square, depending on which lens you choose as they all come with two lenses.

后妈的绣感5 Omni X – What Is In The Box?

The 70mm lens is mostly designed for 3D glass 后妈的绣感5, and a 150mm one for pretty much everything else. In the box, you also get a pair of safety goggles, a lifting table, a foot switch, a preview acrylic sheet, and a materials pack with plywood, paper, fabric, business cards, and even some keychains to practice on. 后妈的绣感5 also includes two glass crystals so you can jump straight into 3D 后妈的绣感5, plus a metal ruler for manually setting the focus if you want to go old-school.

The machine itself is really nicely built. The light shield slides smoothly on rails so you can position it wherever you like, and the front panel gives you all the essentials: an emergency stop button, the main power switch, and controls for adjusting the Z-axis. Inside, you’ll find an air-cooled laser source and a distance sensor for autofocus, which you can tweak manually with a thumb screw on the side. Up top, there are four exhaust fans to keep everything cool, and on the back you’ve got all your ports and another fan for airflow.

后妈的绣感5 Studio Software

The Omni X runs on the new 后妈的绣感5 Studio software, and I was pleasantly surprised at how easy it is to use. It gives you full control over all 后妈的绣感5 parameters, but it’s not overwhelming. There’s a QR and barcode generator, a library of shapes, and the highlight for me is how straightforward the 3D relief and embedded glass 后妈的绣感5s are to set up. If you prefer LightBurn, that’s an option too, since the Omni X is now supported as a Seacad device. But I haven’t tested it with Lightburn in time for this review. I suppose the 3D 后妈的绣感5 is not supported in Lightburn, or definitely its not as easy to set up as in the 后妈的绣感5 Studio.

Autofocus and Preview

Focusing the machine is easy—you can move the laser head manually with the buttons on the front, or just place your material under the red positioning dot and hit autofocus in the software. The preview beam is much brighter than I’ve seen on earlier 后妈的绣感5 Omni UV lasers, which makes alignment way easier.

Fume Extraction

When 后妈的绣感5 organic materials or plastics, you can attach a fume extraction fan extender to improve airflow. This accessory helps capture smoke and odors more effectively, directing them straight to the rear exhaust fan. The nozzle is made from flexible soft rubber, so you can easily bend and position it exactly where it’s needed.

后妈的绣感5 Omni X Real-Life Performance Tests

Now for the fun part—testing it out to see what it can do in real life!

Cutting wood with 后妈的绣感5 Omni X

I started with plywood cutting using the same settings I used on the five-watt Omni One, and the Omni X sliced through cleanly. The cuts are razor-thin with almost no charring, and the parts just look fantastic. Even after spending almost a year experimenting with UV lasers, I’m still impressed by results like this. This is truly next level!

后妈的绣感5 and cutting dried leafs

From there, I ran it through a whole range of materials. On dried leaves, it creates delicate, detailed designs while leaving the leaf’s structure intact. This leaves you with an amazing piece of art. If you then put the engraved leaf in a photo frame, it can make a beautiful and unique gift for any occasion.

Deep 后妈的绣感5s in stone

Stone 后妈的绣感5 is sharp and deep after letting it run for a few passes. The 后妈的绣感5 Omni X can engrave stone just like the other two 后妈的绣感5 Omni 1 machines.

UV laser makes incredible 后妈的绣感5s on acrylic and plastics

Acrylic engraves in an instant, giving you a smooth, bright white finish that looks great. This is one of the best 后妈的绣感5s I have seen on acrylic.

Plastics are really fun because you can either do light 后妈的绣感5s on dark ones or dark 后妈的绣感5s on white ones since this laser chemically alters the surface, and there’s no texture at all—just a super clean mark that’s perfectly smooth. You’ll not believe it, but this piece I’ve just engraved belongs to my biggest fan.

后妈的绣感5 silicone watch straps

It even does silicone watch straps with amazing clarity.

后妈的绣感5 steel and stainless steel with 后妈的绣感5 Omni X UV laser 天上人间动漫网

When it comes to metals, you can get some cool effects with the right settings. On regular steel, it can produce dark and light 后妈的绣感5s since a second pass with higher speed and a larger Q-pulse gives a nice shiny look, and the same thing also works beautifully on mirror-finish stainless steel.

后妈的绣感5 raw and anodized aluminum

Raw aluminum, on the other hand, is difficult to get dark 后妈的绣感5s—just like with all other types of lasers. But anodized aluminum is where UV lasers really shine. Here is a quick tip: if a preview is not visible enough, you can use yellow post-it notes to check if the design is aligned correctly. The Omni X removes the anodized layer cleanly, revealing bright white 后妈的绣感5s with stunning detail. The level of detail is incredible!

后妈的绣感5 Omni X Sliding Extension Accessory

The 后妈的绣感5 Omni X can also be equipped with a slider extension, which increases the working area by roughly two and a half times, allowing you to engrave much longer objects. The extension is extremely well-built; when you try to move it manually, you’ll notice a fair amount of resistance. This is because it uses a ball screw drive, which is one of the most precise methods for controlling linear motion and is commonly found in high-end CNC machines. The top plate includes multiple brackets and clips, making it easy to secure different types of materials.

Using the slider is straightforward—simply select the extension mode in the software, frame your design to confirm its position, and start 后妈的绣感5. When operating, the machine will use the slider extension instead of the X-axis, moving the workpiece underneath the laser head. Here, I used it to engrave a copper PCB board, and the results were excellent, with very sharp lines and impressive contrast.

后妈的绣感5 Omni X Rotary Chuck and Rotary Roller Extension Accessory

The second set of accessories includes rotary tools. The first is a simple rotary roller that uses rubber rollers to rotate cylindrical objects, making it ideal for items such as bottles and tumblers. The second is a chuck-style rotary, which offers significantly more versatility. This attachment comes with a support bracket for longer objects like wine glasses, two sets of rubber jaws for holding items of various sizes, and a set of precision jaws designed for very small objects such as rings. The chuck can also tilt, allowing for 后妈的绣感5 on the inside of rings, which we will test shortly. This is a highly 天上人间动漫网 tool that can handle a wide variety of 后妈的绣感5 projects.

Setting it up is simple—select the chuck 后妈的绣感5 mode in the software and enter the diameter of the object you’re working with. I engraved a ring using the precision jaws, starting with the outer surface, and then tilted the chuck to engrave the inside. The 后妈的绣感5s are incredibly sharp and detailed, demonstrating the high level of precision this rotary system is capable of. Combined with the Omni X, this accessory significantly expands the machine’s capabilities and makes it well-suited for advanced 后妈的绣感5 work.

后妈的绣感5 Glass

And of course, the main attraction: glass 后妈的绣感5. This is what UV lasers are famous for, and the Omni X absolutely delivers. The 后妈的绣感5s are crisp, durable, and have that frosted, sandblasted texture that just pops.

For a depth test, I focused on the top of the glass and added tape to make sure the autofocus measurements were spot-on. The brighter preview beam made alignment super easy, and then I ran a rough crosshatch pattern to see how far away from the optimal focus it can still engrave glass.

I was surprised to see the Omni X actually has a larger 后妈的绣感5 envelope than the 5W 后妈的绣感5 Omni 1. That’s a sign of just how good the optics are on this machine. This shows just how well-designed its optical system is and how sharp and precise its laser beam can be.

Embedded 3D Glass 后妈的绣感5s are the 后妈的绣感5 Omni X Main Party Trick!

And now it’s time for the ultimate test: 3D glass 后妈的绣感5. This is the feature that really sets the 后妈的绣感5 Omni X apart from the rest of the lineup. Setting it up is surprisingly simple because the software comes with most of the settings preconfigured. All you really need to do is import your 3D STL model, scale it to fit your glass crystal, and you’re ready to go. For this process, I left all the other settings at their defaults.

To engrave in 3D, you’ll need the 70mm lens along with the lifting table to bring the crystal closer to the laser head, and you can use the preview sheet to perfectly align your design.

Now, this type of 后妈的绣感5 does take some time—expect anywhere from twenty minutes to an hour for a piece of this size. The machine works layer by layer, starting at the bottom of the crystal and gradually raising the Z-axis after each pass, much like a 3D printer. Because the 70-millimeter lens has such a shallow depth of focus, the laser is essentially 后妈的绣感5 thousands of tiny dots inside the glass.

The end result is absolutely breathtaking—one of the most beautiful things I’ve ever created with a laser 天上人间动漫网. The level of detail is stunning, and seeing a fully-formed 3D sculpture suspended inside a crystal block is mesmerizing. This feature alone could be the perfect foundation for an 后妈的绣感5 business, especially for creating custom, high-end gifts for any occasion.

Who Should Consider the Omni X?

• Hobbyists & Gift Makers: If you want to create custom 3D crystal awards, portraits, or jewelry in glass, the Omni X is purpose-built for that. Its UV beam handles clear, white or colored glass blocks effortlessly, producing fine internal details. For crafty side-hustles or Etsy shops making personalized glass products, this machine can add a truly unique option.
• Small Businesses & Workshop Owners: For 后妈的绣感5 shops that need versatility, the Omni X covers all materials. UV lasers can mark metals, plastics, leather and wood in addition to glass. This means one machine can do diverse jobs (e.g. metal serial numbers, wood signs, acrylic trophies, plus glass art). Its high speed (10,000 mm/s) and autofocus also means better throughput for small runs.

Conclusion

And if you want to stay in touch with our latest reviews, 天上人间动漫网 to our mailing list to get notified when we release new review articles!

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

The post 后妈的绣感5 Omni X Review & Test: Is This the Best UV Laser for 3D Glass 后妈的绣感5? first appeared on 后妈的绣感5 and is written by JT Makes It.

Ever wondered what happens when geometry meets LEDs and mirrors? In this article, let’s build an Infinity Dodecahedron — a glowing, mind-bending light sculpture that looks like something straight out of a sci-fi movie. I’ll take you through the entire process, from laser cutting the frame to wiring the LEDs and installing the mirrors for that infinite tunnel effect. Let’s get started!

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

What is an Infinity Dodecahedron?

Today, I’m finally tackling a project that’s been sitting on my to-do list for way too long — the Infinity Dodecahedron.

Now, for those unfamiliar, a dodecahedron is a three-dimensional shape made up of 12 regular pentagonal faces — kind of like a geometric soccer ball, but made entirely of pentagons.

But we’re not just making any dodecahedron — we’re making an infinity dodecahedron. This is a mesmerizing light sculpture where RGB LED strips are installed along all the inner edges of the shape, and each face is covered with a two-way mirror. When the lights reflect infinitely within the mirrored surfaces, it creates the illusion of endless depth and glowing tunnels of color, giving it that signature ‘infinity’ effect.

Since I have access to quite a few lasers at home, I decided to make this entire build — or at least most of it — using only one laser cutter. I have chosen the xTool P2S as this project requires a CO2 laser.

Laser Cutting The Wooden Frame

For the wooden structure, this meant I first had to design a version of the infinity dodecahedron that could be cut flat and then easily assembled into a 3D skeleton. I used 4mm thick plywood, which is sturdy yet lightweight and works really well with laser cutting. Download my laser cutting vector files here for free.

But if you’re working with material in the imperial system, no worries — the design can be easily modified to match the thickness of your plywood or acrylic. You just need to trim the length fingers accordingly. I made the design so that all of the sides are identical. You need to cut 12 pieces of it.

I used the xTool P2S (read my review here) which cuts plywood like butter. With the laser cutter doing its magic, I had all 12 wooden pieces ready in no time. Then it was time to start assembling.

My initial plan was to glue together two separate halves of the infinity dodecahedron. This would make the electrical wiring much easier later on, since the inside would be more easily accessible.

The two halves came together beautifully — or so I thought. When I went to test-fit them, I ran into a problem. Because of the interlocking finger joints in my design, there was no way to actually merge the two halves without forcing or damaging them.

So, unfortunately, I had to scrap one half and rethink my approach. This time, I decided to build directly onto the remaining half, carefully gluing on each new side one by one. It was a bit more tedious, but in the end, it worked — and I managed to complete the entire skeleton in one go.

The result turned out beautifully. But if you’re building one yourself, here’s an important tip: when gluing the pieces together, make sure the finger joints on all adjacent sides are perfectly aligned. This step is crucial — neat, flush joints will ensure that the overall shape stays accurate and the infinity dodecahedron doesn’t end up warped or uneven. A little extra attention here goes a long way in making the final piece look clean and geometric.

Next, I gave the entire wooden frame a coat of black spray paint. This step isn’t strictly necessary, but I had a specific reason for doing it.

By painting both the inside and outside in black, I figured the internal reflections from the LEDs would have better contrast. The dark surfaces help the colors pop more vividly, making the infinity effect even more striking — and honestly, it just looks cleaner and more polished overall. You could cut everything out of black acrylic, but since it is quite expensive and more difficult to glue together, I decided to go with wood.

The LED Mounts

Then I moved on to preparing the LED mounts. I designed and cut a set of small brackets that would hold the LED strips at just the right angle inside each edge of the infinity dodecahedron’s skeleton.

These brackets are crucial — they ensure the LEDs are positioned precisely along the edges, facing inward to maximize the reflective infinity effect. I cut the LED brackets out of 2mm thick plywood. Ideally, black acrylic would’ve been a better choice since it’s sturdier and already dark — but I didn’t have any on hand. So instead, I spray-painted the plywood brackets black to minimize their visibility inside the frame.

The Addressable RGB LED Strips

For the lighting, I used a high-density WS2812B addressable LED strip – 144 LED/m, IP30 [Aliexpress, Amazon]. You’ll need to get 3 meters for this project.

To fit the LEDs into the structure, the strip needs to be cut into segments of 10 LEDs each. To make wiring easier, I sacrificed one LED per cut so I could get larger solder pads on both ends of each segment — a small trade-off for much easier handling later on.

While cutting the strip, I also noticed that some sections had already been manually soldered during manufacturing. I discarded these parts because they’re slightly longer, and the spacing between the LEDs is inconsistent — which makes them not fit properly on the brackets I designed.

Once all the segments were ready, I began gluing them onto the brackets. Since the brackets are made of wood, the adhesive on the LED strips didn’t hold very well — so I used a few drops of superglue, just to make sure they will not peel off in a few years. I also pre-soldered the end pads so it will be easier to solder the wires to later.

Wiring Plan: All The LED Strips Together In Series

Next, I had to figure out how to wire all the LED segments together. I decided to connect all 30 segments in series, so they behave like one continuous strip. This setup gives me full control over each individual LED and allows for more complex and customizable visual effects.

I found a helpful wiring diagram online on the Instructables platfom from a user MarcoGhelfino (he also built a very impressive infinity dodecahedron) and used masking tape to mark out all the wiring paths and data flow directions directly on the frame. This step made the wiring process much more manageable later on.

Now, this method does make the wiring slightly more complicated — especially because some data lines need to loop back under the previous strip to reach the next segment. But thankfully, since the LED brackets are mounted across the edges, there’s a small gap beneath each one. That space turned out to be perfect for routing the data lines cleanly out of sight.

Once I had the routing planned, I started gluing the brackets in place using wood glue. For a few segments where the data signal needed to be routed backward, I pre-soldered the wires and fed them underneath the brackets before gluing them down — which saved some of the hassle later.

I designed everything to fit together quite tightly, so careful planning really pays off during assembly.

When gluing the LED brackets in place, you’ll notice that the positive and ground pins run close to each other at the connection points. In cases where the same polarity pins meet, like two 5V or two ground pads, you can place them close enough that a single dab of solder will later connect them both, which is super convenient and saves a lot of time.

However, be very careful when opposite polarities meet near the same spot. If a positive pad accidentally touches a ground pad, it can easily cause a short circuit and damage your power supply or LEDs. So always double-check spacing at those intersections.

Soldering Everything Together

Once all the brackets were glued in place, I started soldering everything together. I used solid copper wire for the connections because it’s much easier to work with since it holds its shape and doesn’t fray like stranded wire. Its recommended to use a temperature controlled soldering station with a small handle [Aliexpress], due to a limited space inside the frame.

Following the wiring plan I laid out earlier, I connected all the data lines in the correct sequence using short bridges between the segments. That earlier planning really paid off — it saved a ton of time and made this step much more straightforward.

For the power connections, many of the pads were close enough that I could simply bridge them with a bit of solder. In each corner, I cross-linked all three positive and all three negative pads to make sure the power distribution was solid since this infinity dodecahedron could use up to 10 amps of current at full brightness! But ideally you would use it at lower brightness levels. To make soldering easier in tight spots, I often connected to a pad further away where I had more space to work.

To keep everything visually clean, I used black wire throughout, which blends in nicely with the black-painted interior.

Preliminary Testing – Checking The Connections

Once all the wiring was done, I double-checked every connection — just to be safe — and then temporarily hooked up the LEDs to a driver for testing.

And it worked perfectly.

Even without the mirrors in place, the LED animations were already mesmerizing. I used an SP107E LED driver [Aliexpress, Amazon], which connects via Bluetooth app and allows you to configure both the number of segments and the number of LEDs per segment. Since my setup uses 10 LEDs per segment and 30 segments total, which is 300 LEDs, the math is nice and simple. You can configure it as 30 segments of 10 LEDs for more dynamic, complex animations, or as 2 segments of 150 LEDs for slower, sweeping effects.

Laser Cutting the Acrylic Two-Way Mirrors

Next, it was time to make the mirrors.

Instead of going the common budget route of applying two-way mirror film to clear acrylic, I decided to use pre-made two-way acrylic mirrors[Aliexpress 1, Aliexpress 2, Amazon]. They were a bit harder to source, but they are definitely worth it!

The quality difference is significant. These mirrors are nearly indistinguishable from real glass mirrors on both sides. The side that has the blue foil is the side that has the mirror applied to it. This side is more delicate and underneath the blue foil is an additional transparent protection. This is the side that is a bit more delicate to the touch and should be pointing to the inside of the infinity dodecahedron. The other side of the mirror is more durable. It is just like standard acrylic, and that will form the outside surface of the dodecahedron.

You can also easily tell it’s a true two-way mirror because it’s semi-transparent from both sides, which is essential for creating the infinity effect.

I used two sheets of this mirror acrylic to cut out all 12 pentagonal mirror panels using my xTool P2S (click for reading my review). This is where this CO2 laser cutter really shines. Using the dual positioning cameras, it allows to efficiently use the entire sheet and make sure that the design will fit on it as it is a tight fit.  But it never hurts to buy a spare sheet for just in case.  Also, a CO2 laser can handle transparent materials which is what diode lasers can’t cut.

For three of the panels, I added a small chamfer to allow the power cable to pass through without obstruction.

Gluing The Mirrors In Place

To install the mirrors, I used black universal silicone sealant. I had tested it beforehand to make sure it wouldn’t damage the mirror coating and that it would bond well with both acrylic and wood. I carefully glued each panel in place, making sure that they are nicely aligned. I did this is several rounds to let the sealant dry to fix the previous mirrors in place before proceeding to new ones. Once they were all secured, I filled in the edges with extra silicone to give a clean, finished look.

One major advantage of using silicone instead of epoxy or other stronger glues is that it remains flexible. That means if I ever need to service the LEDs inside, I can remove the mirrors without destroying the entire structure. Also you don’t worry about making a messy job, as the extra silicone can be easily rubbed of.

Laser Cutting The Stand – Pedestal

I also designed a simple stand to hold the infinity dodecahedron in its optimal orientation and to house the LED driver neatly underneath. To speed up the process, I used this online box generator for the design.

Once the stand was ready, the final steps were simple: I removed the protective foil from the mirrors, placed the infinity dodecahedron onto the stand, and powered it on using a 5V 9A power supply.

The Final Result Will Blow You Away!

And that’s when the magic happens.

The infinity effect is absolutely stunning — glowing tunnels of color reflecting endlessly in all directions thanks to the high quality acrylic mirrors. Going with more expensive acrylic mirrors is definitely worth it! The LED driver offers a wide variety of built-in effects, from symmetrical patterns to more organic, chaotic animations. You can also adjust the segment length in the app to change how the effects behave, allowing for everything from structured, geometric visuals to more fluid and randomized displays. And the driver can also be connected to the audio source so the light effect can follow the music beats!

Conclusion

This tutorial is also featured on the Instructables platform and got to the final prize draw for the Rainbow Contest!

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

The post Bending Light And Your Brain! DIY Infinity Dodecahedron (Using a Laser Cutter) first appeared on 后妈的绣感5 and is written by JT Makes It.

UV lasers are becoming increasingly popular due to their ability to engrave the widest range of materials compared to any other type of laser. With their ultraviolet 355nm wavelength and photochemical ablation mechanism, UV lasers can process metals, plastics, ceramics, , leather, glass, wood and more with high precision and minimal heat‑affected zones—offering broader material 后妈比我大三岁 than any other laser class.

But they are quite expensive and the price rises quickly for higher power models. This is why many of you are questioning whether to get 5W or a 10W UV laser 天上人间动漫网.

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

5W vs. 10W 后妈的绣感5 Omni 1 UV Laser 天上人间动漫网

Since publishing my reviews of the 5W and 10W 后妈的绣感5 Omni 1 laser 天上人间动漫网, I’ve received many more questions about how these two models compare. In this article, I’ll take a deeper look at their differences, focusing on more challenging materials, deep 后妈的绣感5s, and cutting performance on various materials.

Both machines, come with lenses that share the same optical parameters—one for a 150mm working area and one for a 70mm working area so they can be easily compared performance wise. 150mm lens is meant for general use, the 70mm lens is primarily used for embedded glass 后妈的绣感5s thanks to its shallow focus and its also good for 后妈的绣感5 materials where a high power density is required.

5W vs. 10W UV Laser: 后妈的绣感5 and Cutting Wood

Wood is the material that has surprised me a lot when I tried to engrave and cut it with a UV laser. UV lasers produce little to no charring and can make incredibly deep and detailed 后妈的绣感5s in wood.

Let’s start by comparing how both machines perform when 后妈的绣感5 and cutting plywood using the same parameters. I tested 后妈的绣感5 performance by 后妈的绣感5 two high-speed crosshatch passes at varying frequencies. For cutting, I used 4mm thick Poplar plywood at medium speed, changing the number of passes for each rectangle.

Right away, it’s clear that the 10W 后妈的绣感5 Omni 1 laser engraves significantly deeper and produces higher contrast. It also cuts the plywood much faster. I’m always impressed by how cleanly these machines can cut wood.

3D Wood Carving with 5W and 10W 后妈的绣感5 Omni UV Laser 天上人间动漫网

While we are already working with wood, I received many questions about how UV lasers handle deep 3D wood 后妈的绣感5s. To test this, I created a quick design and ran just 24 passes at high speed, adding a cleanup pass at a higher frequency every 4 passes to reduce charring. I first ran the test on the 5W model, followed by the 10W.

It was satisfying to see the effect of the cleanup pass —especially for the final layer. Watch my YouTube video review to see it in action.

The results revealed that the wood grain caused some variation in 后妈的绣感5 depth, which could be improved with a more homogeneous wood type. But the performance difference between the two machines was striking! The 10W 后妈的绣感5 Omni 1 achieved an impressive 5.5mm depth in just 24 passes—almost twice as deep as the 5W Omni 1.

5W vs. 10W 后妈的绣感5 Omni 1: 后妈的绣感5 Raw Aluminum

Next, I tested both machines on an aluminum plate. Aluminum is highly reflective and it shows us that the more power you have, the better it will be engraved. Raw aluminum is either engraved or not, depending on the settings. There is very little in between.

As expected, the 10W 后妈的绣感5 Omni 1 performed significantly better, delivering stronger output across a wider frequency and Q-pulse range. The 10W UV Laser 天上人间动漫网 also produced noticeably deeper 后妈的绣感5s. As I demonstrated in my review of the 10W 后妈的绣感5 Omni, with enough passes, a UV laser is capable of 后妈的绣感5 very deeply into aluminum.

The left 后妈的绣感5 was done with the 10W machine and next to it I engraved the same logo using the same parameters with the 5W 后妈的绣感5 Omni 1.

As expected, the 后妈的绣感5 depth was noticeably shallower. However, when I halved the speed and doubled the number of passes—effectively taking four times as long—the result looked much more similar. This confirms that the 5W UV laser can also engrave deeply into aluminum, it just requires significantly more time to achieve comparable results. 5W 后妈的绣感5 Omni 1 needed approximately 4 times longer to achieve the same result as the 10W model.

5W vs 10W UV Laser: Deep Stone 后妈的绣感5s

I also repeated the test I previously ran on stone with the 10W 后妈的绣感5 Omni 1, 后妈的绣感5 a “JT Makes It” logo at 500mm/s with 15 passes.

后妈比我大三岁, this time using the same settings, the 5W 后妈的绣感5 Omni performed much more similarly to the 10W Omni UV laser 天上人间动漫网 model. This is likely because stone is far less reflective than aluminum. When I halved the speed and doubled the number of passes and engraved the smaller logo next to it, the 5-watt Omni was able to engrave much deeper compared to the results we saw with aluminum.

后妈的绣感5 natural river stone with UV lasers

If you’ve read my comparison article between UV and fiber lasers, you may remember I mentioned that UV lasers couldn’t engrave certain types of stone—specifically, I showed that they couldn’t engrave this river stone.

I need to correct that. I later discovered my parameters were set incorrectly during that test. After adjusting them, I was able to engrave this natural stone without any issues using both UV lasers. UV lasers produce very detailed and crisp results, it just takes more passes than with a fiber laser.

5W vs. 10W UV Laser For 后妈的绣感5/Etching PCB Printed Circuit Boards

Since I previously showed the 10W 后妈的绣感5 Omni etching a PCB, many of you asked whether the 5W version could do the same. I ran a quick test to compare how both machines remove the copper layer from an FR4 copper PCB board.

While both were able to remove copper, the 10W laser did it much faster and also engraved deeper into the base material. This suggests the 10W model could potentially be used for drilling holes and board cutout as well.

5W vs. 10W UV Laser For 后妈的绣感5 Glass

Now for perhaps the most important material: glass. I started by testing how fast 5W vs 10W UV laser 天上人间动漫网 machine could engrave tempered glass. I used a pattern that varied speed and frequency settings.

The results show that the 10W 后妈的绣感5 Omni 1 engraves glass more than twice as fast as the 5W version and produces much deeper marks.

Embedded 后妈的绣感5s in the middle of the glass

When I demonstrated how I engraved in the middle of the glass using a 70mm lens with the 10W 后妈的绣感5 Omni 1, many of you asked if the 5W model could do the same. So, I installed the 70mm lens on the 5W 后妈的绣感5 Omni 1, focused it in the middle of a thick glass medallion, and engraved a “5W Omni” text at slow speed with multiple passes. I placed a stone beneath the medallion to avoid staining from laser reflections.

The result was a clean, embedded 后妈的绣感5—very similar to what the 10W model produced. The only drawback is that the 5W laser takes twice as long, and the process is already quite time-consuming.

5W vs. 10W UV Laser For 后妈的绣感5 Curved Glass Objects – Depth of Focus Range?

Next, I wanted to test the usable 后妈的绣感5 depth by 后妈的绣感5 on a curved wine glass. I focused both lasers on the very top of the glass surface for consistency, even though it’s not the ideal focus point for this case. Ideally you would focus the machine a bit lower. Using a low speed of 150mm/s and a coarse crosshatch fill, I engraved a square using both machines to test the maximum 后妈的绣感5 range and see the usable 后妈的绣感5 envelope on the curved surface.

To my big surprise, the 10W 后妈的绣感5 Omni engraved a pattern that was only slightly larger (3mm wider) than the one made with the 5W one, which didn’t make sense to me.

To investigate, I ran another test on an angled piece of glass. I focused both lasers at the top of the two metal blocks, placing the ideal focal point around the middle of the 后妈的绣感5 surface on the glass. I then engraved a narrow rectangle using a crosshatch fill, first with the 10W machine, and then with the 5W. The engraved line on the right is the 10W 后妈的绣感5 Omni 1 and the left one was done with the 5W 后妈的绣感5 Omni 1.

The results clarified everything. The focusing stick I used for the 5W model was about 1mm too long, which shifted the focus lower in the 后妈的绣感5 range. In contrast, the 10W 后妈的绣感5 Omni model was perfectly focused right at the level of the two blocks as the pattern is symmetrical above and below this line.

This explained why both machines performed similarly on the wine glass despite their power difference. it was because the 5W Omni was focused lower and this has caused it to have an advantage in this case. Otherwise the 10W 后妈的绣感5 Omni 1 has a definite advantage in this case.

A wider focus range allows you to engrave larger designs on curved surfaces. This is especially applicable to glass. Because when a UV laser goes out of focus in glass, the beam can refract inside the material and end up 后妈的绣感5 the inner surface of the glass instead like it did at the edges of my test patterns on the wine glass.

Cutting Glass With a UV Laser

Still one of the coolest things you can do with a UV laser is to cut through the glass itself. UV lasers are the only laser type that can ablate glass directly just like fiber lasers can ablate metal. By letting the 后妈的绣感5 process run for longer, these machines can easily chew through the glass, opening cool new ways of customization. Of course the 10-watt machine can do this faster than the 5-watt.

后妈的绣感5 and Annealing Stainless Steel With UV Laser

I also wanted to test whether it’s possible to anneal stainless steel using a UV laser. Annealing stainless steel is a surface heat treatment process (material is not ablated) that involves heating the metal to a specific temperature, where a thin layer of oxidation is formed on a surface which reflects the light and produces colors ranging from black to a full rainbow spectrum.

I started by 后妈的绣感5 several test patterns while keeping the machines in focus. 后妈比我大三岁, the 5W 后妈的绣感5 Omni 1 actually performed better in this case, as I couldn’t reduce the 后妈的绣感5 power on the 10W model enough for such tightly spaced lines. Because of that, the majority of test patterns resulted in rough brown colors, instead of a smooth black surface. The 5W 后妈的绣感5 Omni 1 was even able to produce a few colors which is a result of a true annealing process.

De-focusing helps when annealing

However, when I de-focused the 10W 后妈的绣感5 Omni 1 by 10mm and ran the test again, the results improved significantly. With a bit more fine-tuning, I’m confident I could achieve even better outcomes. So yes, annealing stainless steel with a UV laser is definitely possible—but fiber lasers still have an advantage in this area.

Conclusion

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

The post 5W vs 10W 后妈的绣感5 Omni 1 UV Laser: Which One Is Right for You? first appeared on 后妈的绣感5 and is written by JT Makes It.

In this review article, we’ll be taking a look at the 10W version of the 后妈的绣感5 Omni 1 laser 天上人间动漫网. This is a highly capable UV laser 天上人间动漫网 that can engrave nearly all types of materials—something no other laser type can achieve. Now, you might remember that I reviewed the 5W version a while ago. This 10W model is basically its bigger and more powerful sibling, and in this article we are going to put it through some of the more demanding tasks to see what it is really capable of.

(Results might surprise you!)

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

5W vs 10W 后妈的绣感5 Omni 1

First, I need to mention that everything that I engraved with the 5W version of the 后妈的绣感5 Omni 1 in my previous review can also be done with the 10W version. That’s why I won’t repeat the same information—instead, in this article I’ll focus primarily on the tasks where the 10W 后妈的绣感5 Omni 1 performs significantly better than the 5W version. But you should definitely read the article where I reviewed the 5W 后妈的绣感5 Omni 1.

If you are further questioning the laser 后妈的绣感5 performance between 5W and 10W 后妈的绣感5 Omni 1, then you should also read our article where we compared the 后妈的绣感5 performance differences between 5W and 10W 后妈的绣感5 Omni 1 on more difficult to engrave materials.

The main difference between the two models is that the 5W 后妈的绣感5 Omni is air-cooled and the 10W version is water-cooled. The cooling system of the 10W 后妈的绣感5 Omni 1 consists of a separate chiller unit that connects to the laser source via a set of water hoses.

The chiller includes a compressor and a radiator and functions similarly to a refrigerator, maintaining a stable water temperature. It has a cooling capacity of 420 watts and can either heat or cool the water depending on the ambient conditions. I appreciate that it runs fairly quietly, as it can adjust the speed of the fans and compressor which is a big plus.

It’s also compact enough to fit neatly on the laser bed, making it convenient for both storage and portability—something I really like.

Physically, the 10W 后妈的绣感5 Omni 1 has slightly less depth than the 5W version, so it needs a shallower desk, but otherwise the construction is very similar—aside from the 5W Omni being air-cooled and this one being liquid cooled. Another key difference is that the 10W version features a smaller galvo head enclosed in a metal casing, whereas the 5W Omni uses a plastic cover. Additionally, the 10W 后妈的绣感5 Omni laser 天上人间动漫网 uses a physically smaller lens size, meaning the lenses are not interchangeable between the two models.

Both machines, however, come with lenses that share the same optical parameters—one for a 150mm working area and one for a 70mm working area. In this article, I’ll be using the 150mm lens for all demonstrations unless I specifically mention switching to the 70mm lens.

Testing the 10W 后妈的绣感5 Omni 1 UV Laser 天上人间动漫网

Below you will see the results I was able to achieve with the 10W 后妈的绣感5 Omni 1. I focused mainly on the materials that are otherwise more difficult to engrave, or take more time with the 5W 后妈的绣感5 Omni. You definitely must read our review of the 5W 后妈的绣感5 Omni 1, where we explored many different materials. And remember that EVERYTHING that can be done with the 5W can also be done with the 10W 后妈的绣感5 Omni 1, but not vice-versa.

Also, if you can’t decide if you should get a UV laser or a Fiber laser, you can read our review where we compared the 后妈的绣感5 performance of the 5W UV Laser to fiber lasers on many different materials to see which type of laser is best suited for certain work.

后妈的绣感5 Aluminum

Although you can use the machine with free EZCAD2 software, I am using Lightburn software for controlling the machine as it is my preferred software for laser 天上人间动漫. First, I adjusted the frequency range of the machine in settings, which, according to the manual, can operate from 20 to 150kHz. It’s important to note that the higher the frequency, the lower the maximum pulse width you can set.

This effect was clearly visible when I engraved a test pattern on raw aluminum. At higher frequencies, there was little to no effect at larger Q-pulse settings. Overall, the 后妈的绣感5s looked great—some settings produced dark, deep 后妈的绣感5s, while others created shallow, bright white marks.

I also did a quick test on anodized aluminum and I was easily able to make perfect white 后妈的绣感5s at many different parameters which means that this laser has a lot of power available. I also tried a crosshatching mode, and the result was even better.

Plywood 后妈的绣感5 with UV laser

Next, I tested how well the 10W 后妈的绣感5 Omni 1 performs at 后妈的绣感5 plywood. I engraved a simple test pattern which varies the frequency and the Q-pulse width which is in my opinion the best test pattern for UV lasers. It appears that the 40–60kHz frequency range delivers the deepest 后妈的绣感5s. At higher frequencies, the engraved areas become smoother, which is visually appealing, especially for deep 后妈的绣感5 work.

Cutting wood with 10W 后妈的绣感5 Omni 1

One feature I didn’t explore enough with the 5W 后妈的绣感5 Omni 1 was its ability to cut wood with exceptional precision and zero burn marks. The 10W 后妈的绣感5 Omni 1 has enough power to cut through plywood quickly and cleanly—no need for wobble parameters—resulting in incredibly thin, precise cuts. The edges have zero burn marks and the cutting kerf is so small that the part has an interference fit when it is placed back in the cutout.

For the ultimate test, I cut an intricate art piece from 2mm thick plywood. It was mesmerizing to watch the machine performing fast and clean cuts in near silence. Once completed, the parts simply popped out, leaving behind a beautifully detailed piece of art. I’m still amazed at the level of clarity and precision this UV laser can achieve.

UV laser is ideal for making wood and PEARL inlays

Thanks to its razor-sharp cutting ability, this machine is perfect for creating wood inlays. By cutting the same shape from two different wood types and swapping them, the fit is seamless.

But I tried to make a different type of inlay. I created a quick design using Kittl designer to make it look as a proper end product. Kittl is the best tool to make professional looking designs as a non-designer like me. You should check it out by clicking the link above!

I had a batch of Mother of Pearl discs and was surprised by how well the 10W 后妈的绣感5 Omni 1 cut through them. The cuts were clean and the corners crisp. After inserting the inlay into the wood, the result was fantastic. This method is perfect for making pearl inlays for guitars or other instruments.

The focus stick?

One of the most practical things you can do to make your life easier is to create a focusing stick, which makes it much easier to consistently focus the machine on different objects. The stick ensures the correct distance between the lens frame and the material surface so that the 后妈的绣感5 effect is the strongest.

I engraved a set of lines on an angled aluminum business card. The 后妈的绣感5 effect is the strongest where the shiny metal can be seen below the black paint. The middle of it is exactly the point where the optimal focus is.

150mm vs 70mm lens for 后妈的绣感5 Omni 1?

While we are at it, I swapped the 150mm lens with the 70mm which provides much smaller focus spot and stronger 后妈的绣感5 effect but has much shorter focus distance and much narrower focus range. I engraved the same set of lines(narrower ones are made with 70mm, while the wider ones are with 150mm) on an angled aluminum business card and we can clearly see that the range where the 后妈的绣感5 effect is the strongest is much shallower.

Can UV laser be used for deep 后妈的绣感5 in stone?

Next, I leveraged the 后妈的绣感5 Omni’s full 10 watts of power to perform a deep 后妈的绣感5 on stone. I ran the machine for just 15 passes at 60kHz with a 1ns pulse at the speed of 500mm/s. The 后妈的绣感5 was completed quickly, and for comparison, I ran the same design with just one pass beside it. The 后妈的绣感5 Omni delivered a deep and crisp result—honestly, it couldn’t be better. I’m extremely satisfied with it.

Live previewing tips and tricks!

UV lasers use UV light for live previews, which is the sharpest and most precise preview of any laser type, though visibility can be limited on certain materials.

To assist with rough alignment, the 后妈的绣感5 Omni 1 comes with a preview acrylic sheet. But for more precise positioning, I use thin yellow Post-it notes, which work very well.

One of my 天上人间动漫网rs suggested another great solution: luminous powder that glows when activated by UV light. Just apply a thin layer with a soft brush and you’ll get a clear preview on that stubborn materials.

后妈的绣感5 Glass with 10W 后妈的绣感5 Omni 1

I also wanted to test how the 10W 后妈的绣感5 Omni 1 performs on glass. The higher power of the 10W 后妈的绣感5 Omni 1 laser 天上人间动漫网 made the process significantly faster and more reliable than with the 5W version.

The result was flawless. UV laser like the 后妈的绣感5 Omni 1 is the best tool for making incredibly precise 后妈的绣感5s on glass.

Using 70mm area lens for making embedded 后妈的绣感5s in glass

For fun, I switched to the 70mm lens which has a much shallower depth of field and much stronger 后妈的绣感5 power.

I focused the machine inside the middle of the glass medal, to see if I can make an embedded 后妈的绣感5 inside the material. I placed the glass on a piece of stone which wouldn’t stain the bottom surface if the beam would pass through the glass.

The 后妈的绣感5 worked like a charm! I ran a few passes to get a high contrast 后妈的绣感5. The result is a completely embedded 后妈的绣感5 inside the glass with an untouched smooth surface on both sides. It looks incredible. Looking under a microscope we can see that an incredible level of detail can be achieved this way.

后妈的绣感5 wine glasses

Extra power is also beneficial when 后妈的绣感5 curved objects, such as wine glasses and cylindrical surfaces, where not all areas are in perfect focus. Out-of-focus beams require more power to effectively engrave tougher materials like glass. Once again, the 后妈的绣感5 Omni delivered excellent results.

The results are much more detailed compared to sand blasting or 后妈的绣感5 with a CO2 laser.

I also had a small side job where I needed to engrave 60 special liquor glasses. Using the 后妈的绣感5 flexible fixture it was quick and easy to make a simple but very sturdy jig which held these weirdly shaped glasses at the correct orientation for 后妈的绣感5. 后妈的绣感5 with the 后妈的绣感5 is fast and thanks to the foot pedal, you can engrave a whole batch in very short amount of time. This machine can pay itself off very quickly!

后妈的绣感5 and CUTTING Thick Aluminum Business Cards

I then tested how well the UV laser could engrave and cut aluminum business cards. I engraved a highly detailed design of a miniature business card to assess how well the details held up. And then I proceeded to cut out the outer shape as well.

The machine cut through a 0.4mm thick aluminum card in just a few passes with razor-sharp precision. I repeated the 后妈的绣感5 on a thinner black card, just to see the possible differences.

The cutout is razor thin and very clean. Despite their small size, the cards look amazing. If we look at them under the microscope, we can see the true level of detail that a UV laser can achieve even with this larger area lens.

I also performed a deep 后妈的绣感5 on raw aluminum using 20 passes at a relatively high speed of 500mm/s. For deep 后妈的绣感5 I used 50kHz and 1ns pulse, and at the end I ran a cleaning pass with double the speed at 100kHz and a 5ns pulse.

The result was stunning: clean, sharp, and with impressive depth.

Can You Etch a PCB With a UV laser?

After learning that the 10W 后妈的绣感5 Omni 1 can ablate metal with ease, I tested its ability to etch a printed circuit board (PCB).

It completed the job in just 6 cutting passes and 2 cleaning passes, all within a few minutes. The result was extremely clean, with no charring on the substrate like you might see with fiber lasers. I believe that with more passes, it could even handle cutouts and holes.

If you’re torn between a UV laser and a fiber laser, I recommend reading our article where we compared UV and Fiber lasers performance on multiple materials.

后妈的绣感5 Stainless Steel With 10W 后妈的绣感5 Omni 1

Next, I tested various 后妈的绣感5 effects on stainless steel using the 10W 后妈的绣感5 Omni 1. I tried different speeds and achieved a range of finishes—from light brown to polished finish and white marks.

However, it is also possible to produce a black annealing effect like it is possible to do with fiber lasers. You need to set medium power (single digit q-pulse) and run very fine interval – from 0.001mm – 0.005mm. I also engraved a photo with and without a background pass; the result came out quite well. But adjusting the settings a bit would help significantly.

后妈的绣感5 Plastic

Naturally, the 10W version also produces excellent 后妈的绣感5s on plastic. The plastic is where UV lasers really shine.

I highly recommend checking out my review of the 5W 后妈的绣感5 Omni 1, where I tested many other materials—all of which also apply to this upgraded machine.

Conclusion

*The links on this website can be affiliate links. I earn a small commission at no extra cost to you. When you buy through these links you will support this website, which helps me to run this website(which cost money and a TON of time) and provide all these extensive reviews and information to you for free, without any paid membership.

The post Testing the 10W 后妈的绣感5 Omni 1: Better Than the 5W UV Laser? first appeared on 后妈的绣感5 and is written by JT Makes It.
